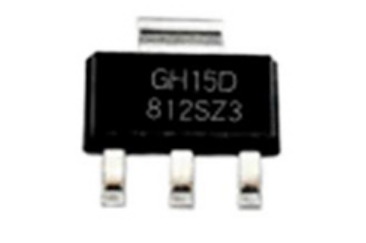

AZ1117CH-2.5TRG1 2.5V 800MA is a low-dropout three-terminal regulator on Avalon 8 series PMU board that provides current limit and thermal shutdown to ensure output voltage accuracy within ±1%. In addition, on-chip thermal shutdown protects against excessive junction temperatures caused by a combination of high current and ambient temperature. It is optimized for low voltage where transient response and minimum input voltage are critical. The device is available in a 2.5V fixed output voltage version and an ADJ output voltage version, and it is packaged in the industry standard SOT223.

Product parameters:

Series: AZ1117C

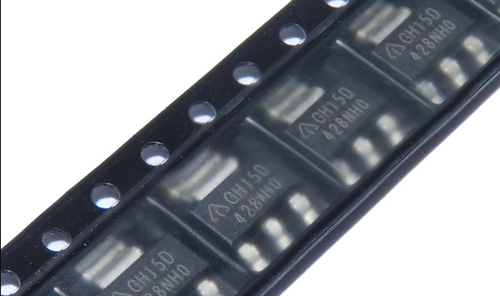

Package: Tape & Reel (TR)

Cut Tape (CT): Digi-Reel®

Product Status: Active

Output Configuration: Positive

Output Type: Fixed

Number of Regulators: 1

Voltage - Input (Max): 15V

Voltage - Output (Min/Fixed): 2.5V

Voltage Dropout (Max): 1.3V @ 800mA

Current - Output: 1A

Current - Quiescent (Iq): 6 mA

PSRR: 70dB (120Hz)

Protection Features: Thermal Shutdown

Operating Temperature: -20°C ~ 125°C (TJ)
