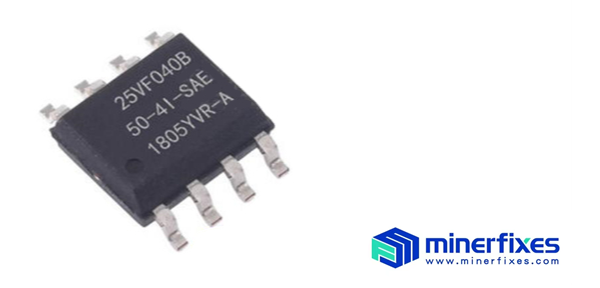

SST25VF040B-50-4I-SAE

SST25VF040B-50-4I-SAE serial flash memory is manufactured using proprietary high-performance CMOS SuperFlash technology. Compared with alternative methods, the split-gate cell design and thick oxide tunnel injector have better reliability and manufacturability. SST25VF040B-50-4I-SAE significantly improves performance and reliability, while reducing power consumption.

Flash memory type: serial NOR

Memory size: 4Mbit

Flash memory configuration: 4M x 1 bit

I2C interface type: SPI

Memory box style: integrated circuit

Number of pins: 8 pins

Clock frequency: 50MHz

Minimum power supply voltage: 2.7V

Maximum power supply voltage: 3.6V

Minimum working temperature: -40°C

Maximum working temperature: 85°C

Product range: 2.7V-3.6V serial NOR flash memory

MSL: MSL 1-unlimited
