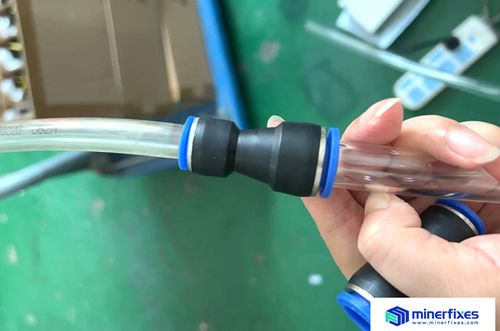

Pneumatic fittings PG straight connector is often used to install water-cooling equipment for miners to ensure that the heat emitted by the hash board chip is quickly taken away by the water flow and ensure the stable operation of the water-cooling equipment. One end of the interface is connected to the 12mm pipe of the exhaust fan of the water-cooling radiator, and the other is connected to the 10mm air pipe of the water-cooling pipe to ensure that the two types of pipes can be connected smoothly.

Production parameters:

Marking: YNT 10

Working temperature: 0~60℃

Normal working pressure: 0~0.9Mpa(0~0.92kgf/cm²)

Maximum operating pressure: 1.32Mpa (1.35kgf/cm²)

Interface material: plastic shell, stainless steel circlip

Use trachea: PU hose, nylon tube

Product features:

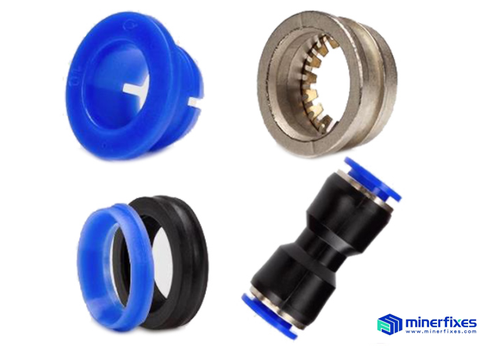

1) Round release cap: press down to release the circlip, pull out the air tube, and the number on the cap indicates the outer diameter of the connected air tube;

2) Locking sleeve & sealing ring: The upper end of the locking sleeve is connected to the ring seat, and the lower end is buckled with a sealing ring. The sealing ring is specially designed with grooves to ensure sealing;

3) Fixed ring seat & circlip: high-pressure resistance, tight seal, not easy to trip, good elasticity, strong grip, resistant to pulling out and plugging, and prevents the tube from falling off;

4) High-strength plastic body: sturdy and durable, not easy to deform and burst;

5) It is resistant to high pressure and is not easy to fall off; it can withstand greater and stronger pressure without falling off and has a long service life and more peace of mind;

6) 360° flexible rotation: After installation, the plastic tube can also be rotated 360°, which is convenient, simple, and intelligent to install.
