SY7208 High Efficiency Power Management IC

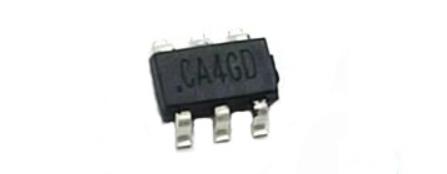

The SY7208 is a high efficiency, with an integrated MOSFET current mode and fixed frequency boost converter. Top Mark: CAxyz (Device code: CA, x=year code, y=week code, z= lot number code)

Features:

Wide input range: 3-25V bias input, 25Vout max

1MHz switching frequency

Low RDS(ON): 150mΩ

Up to 90% efficiency

Under-Voltage lockout Protection

Over-Temperature Protection

Internal Soft Start

1uA Shutdown current

RoHS Compliant and Halogen Free

Accurate Reference: 0.6VREF

Compact package: SOT23-6

Temperature Range: -40°C to 85°C

Applications:

White LED display backlighting

Cell phone and smart phone

PDA, PMP, MP3

Digital camera
