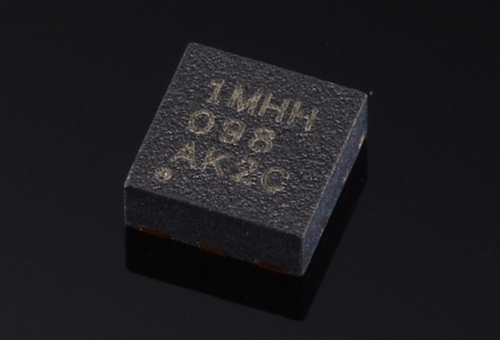

The TLV758P is an adjustable 500-mA low-dropout (LDO) regulator. The device is a boost converter chip of 1166pro, housed in a small 6-pin 2*2mm WSON package, consumes very low quiescent current, and provides fast line and load transient performance. In addition, the TLV758P features an ultra-low dropout voltage of 130mV at 500mA, helping improve system power efficiency.
The TLV758P supports an input voltage range of 1.5V to 6.0V and an externally adjustable output range of 0.55V to 5.5V, optimized for various applications. The low output voltage enables this LDO to modern power microcontrollers with lower core voltages.
The device features integrated thermal shutdown, current limit, and under-voltage lockout (UVLO) functions.
