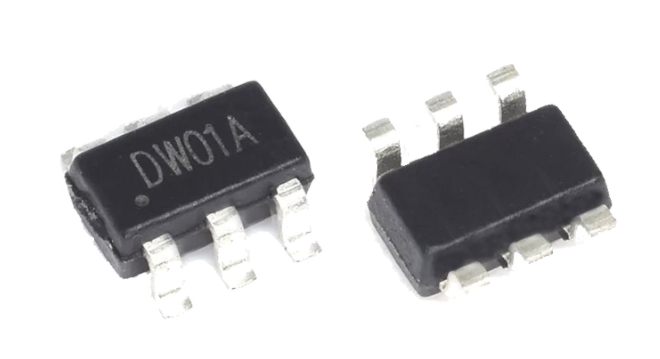

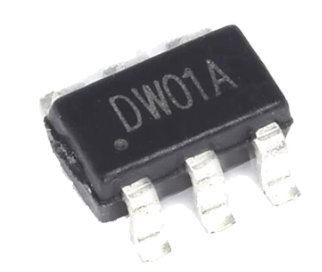

The DW01's ultra-small package and fewer external component requirements make it ideal for integrating the DW01 into the limited space of a battery pack. They are designed to protect DW01 Li-Ion/Polymer batteries from damage or shortened life due to overcharging, over-discharging, and / or over-current in single-cell Li-Ion/Polymer battery-powered systems such as cell phones. Its accurate ±50mV overcharge detection voltage ensures safe and fully utilized charging. In addition, a very low standby current draws very little from the battery while in storage.

Features:

• Tiny SOT-23-6 package reduces board size.

• Ultra-low quiescent current of 3μA (Vcc=3.9V).

• Ultra-low power-down current of 0.1μA (Vcc=2.0V).

• Precision overcharge protection voltage of DW01 Plus is 4.3V ± 50mV

• Load detection function in overcharge mode.

• Two detection levels for overcurrent protection.

• Delay time is generated by the internal circuit. No external capacitors are required.
