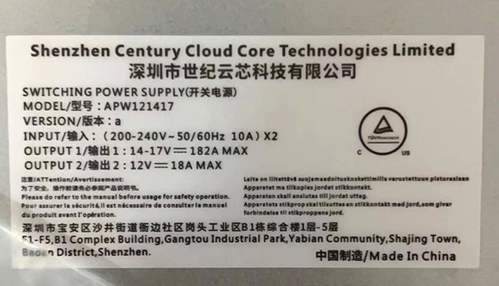

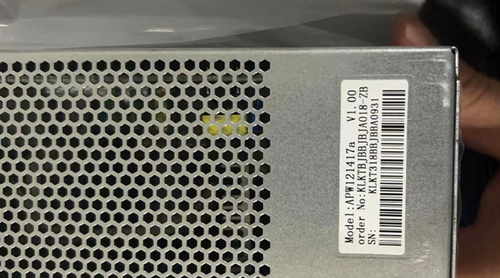

Brand new Antminer APW12 1417 a (version) PSU for Bitmain Antminer L7, S19XP and S19 (240-Ch). The brand new and original Antminer APW12 1417a power supply is a part of the Antminer L7. The AC output voltage of the power supply is 200-240V, the AC input current is 20Amp, and the AC input frequency range is 47-63Hz.
To ensure the normal use of the miner, please do not use other versions of the APW12 power supply to replace it. If you are unsure about your power supply model, please inform the sales of the miner model, and we will recommend the power supply version for you.
Product Glance:
Out1
|
DC Voltage |
14V-17V |
|
Rated Current(220V input) |
182A |
|
Ripple & Noise |
<1% |
|
Line Regulation |
<1% |
|
Load Regulation |
<1% |
|
Setup Time |
<2S |
|
Short Circuit Protection |
>10mS |
Detailed Characteristics:
Out2
|
DC Voltage |
12.3V |
|
Rated Current(220 V input) |
18A |
|
Ripple & Noise |
<1% |
|
Voltage Accuracy |
12.2V---12.4V |
|
Line Regulation |
<1% |
|
Load Regulation |
<1% |
|
Setup Time |
<2S |
|
Short Circuit Protection |
>10mS |
Input
|
Voltage Range |
200-240V AC |
|
Frequency Range |
47-63Hz |
|
Power Factor |
>0.99(full load) |
|
Leakage Current |
<1.5mA（220V 50Hz） |
Protection
|
Low-voltage Input |
80-89V AC |
|
Output Short Circuit |
Yes |
|
Overheat Protection |
Yes |
|
Over-current Output |
260A-340A (protection value varies under different voltage) |
Environment
|
Operating Temperature |
-20-45℃ |
|
Operating Humidity |
20%-90%RH(non--condensing) |
|
Altitude |
< 2000m |
Structure
|
Dimensions |
254.6mm*251.6mm*63mm |
|
Net Weight |
3.6kg |
|
Cooling System |
Forced‐air cooling |
|
Noise |
45dBA |
