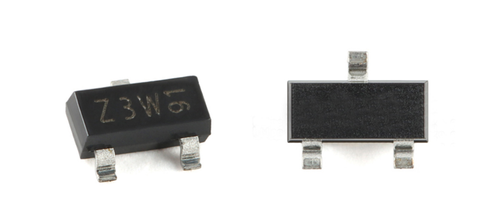

The BZX84C5V6 is a low power Zener diode in a small SOT23 plastic SMD package. The nominal operating voltage is 5.6V, and the silkscreen mark is Z3/Z3W.

Features:

• Total power dissipation: max.250 mW

• Three tolerance series: ±1%, +2%, and approx. ±5%

• Working voltage range: nom. 2.4 to 75 V (E24 range)

• Non-repetitive peak reverse power dissipation: max.40 W.

Application:

• General regulation functions.
