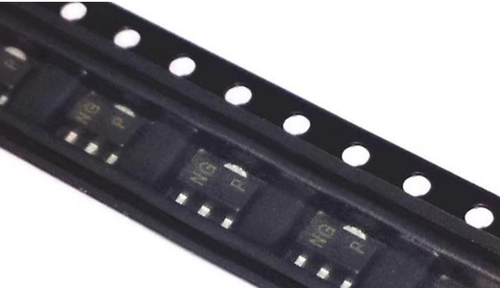

2SCR553P NPN Middle Power Transistor The 2SCR553P is a medium power transistor suitable for medium power drivers with a collector-emitter voltage of 50V and a collector DC current of 2.0A. Available in the MPT3 SOT-89 package, the complementary PNP transistor type is 2SAR553P. Lead-Free / RoHS Compliant. In miner, it is commonly used to run on Antminer S9 hash board.

Parameters:

Collector-base voltage: 50V

Emitter-base voltage: 6V

Collector-emitter voltage: 50V

Collector current pulse: 4.0A

Junction temperature: 150°C

Range of storage temperature: -55 to +150°C

Applications:

Motor driver, LED driver, power supply.
