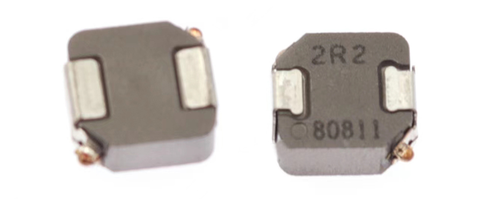

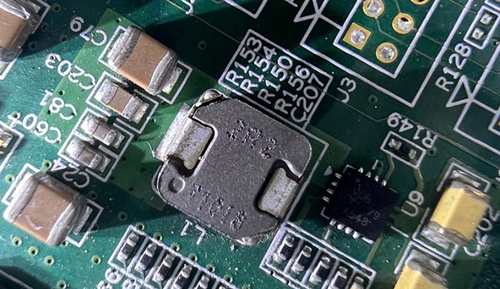

SPM6530T-2R2M is a high-current SMD power inductor with a magnetic metal material. The inductance silkscreen marked 2R2 is located on the Antminer S9 control board. This product has good superposition characteristics and low DC resistance.

Feature:

• Small footprint and low profile design

Footprint: 7.1 x6.5mm

Height: max. 3.0 mm

• High power handling capability

Small copper loss

Large saturation induction using iron-based metals

• High Curie temperature of approximately 550°C means low inductance temperature variation.
