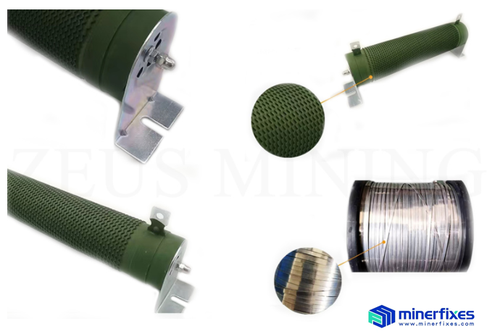

RXG20 wire round resistor fixes two lead-out pots on the cylindrical ceramic tube. The surface of the ceramic tube is wound with a flat-band wave-shaped alloy resistance wire, which can withstand greater impact power. Its surface is coated with a layer of flame-retardant , High temperature resistant coating. Thickened galvanized stainless steel brackets at both ends, safe, reliable and firm. While the ceramic tube serves as the skeleton of the resistance wire, it also functions as a radiator. This product is suitable for simulating load experiments, equipment discharge, automatic control, frequency converter energy consumption braking, etc.
Product parameters:
Product Name: Corrugated Wirewound Braking Resistor
Power: 100W
Resistance: 25R
Structural form: refractory ceramic tube, organic silicon coating, carefully selected resistance wire
Product features: non-toxic and odorless, thickened and widened hardware accessories, safe and stable, sufficient power, strong overload capacity, easy to install
Operating environment: rated power temperature (±70°C), operating temperature (-50°C-375°C), suitable for harsh environments with high requirements
Product features:
Stainless steel bracket: thickened galvanized and stainless steel bracket to enhance safety and stability;
Silicone coating: the most flammable coating at high temperature, prolonging the service life, protecting the resistance wire from oxidation, and isolating water and moisture;
Selected ceramic skeleton: strong ceramic skeleton, with better high temperature load and stability, high hardness, non-conductive;
Selected soldering iron, constantan material: it has a low resistance temperature breakdown and good processing performance.
