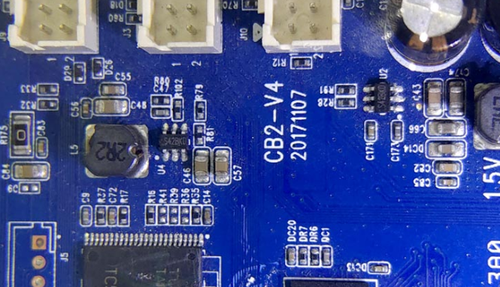

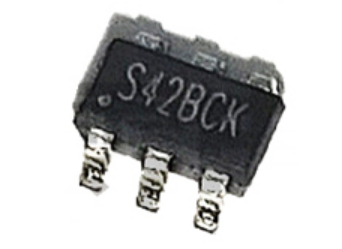

STI3472 is a fully integrated, high-efficiency 600KHz, 18V, 2A synchronous rectification step-down converter located in the U2 position of the Whatsminer control board, and the silkscreen is S42B. STI3472 allows efficient operation in a wide output current load range. It provides two operating modes, PWM control and PFM mode switching control, which can achieve high efficiency in a wider load range. Packaged in a ROHS-compliant 6-pin SOT23 package.

Product features:

• High efficiency: up to 95%max

• 600KHz frequency operation

• 2.0A output current

• No Schottky diode required

• 3.5V to 18V input voltage range

• 0.8V reference control for excellent line and load transient response

• Comprehensive internal compensation

• Stable with low ESR ceramic output capacitors

• thermal shutdown

• Inrush current limiting and soft start

• Available in SOT23-6 package

• 40°C to +85°C temperature range
