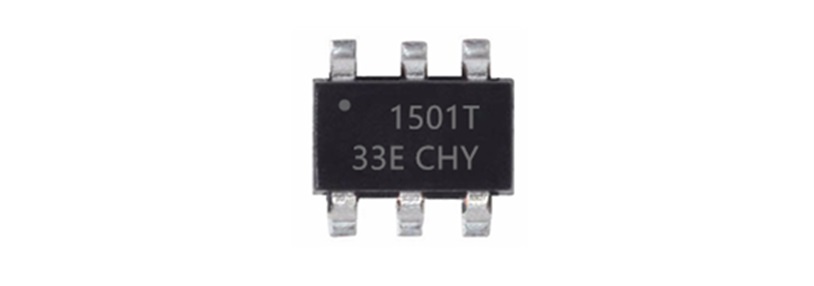

MCP1501T-33E/CHY

Voltage Reference, Series - Fixed, 3.3V, 0.1 % Ref, 50ppm/°C, SOT-23-6

The MCP1501T-33E/CHY is a buffered voltage reference capable of sinking and supplying 20 mA of current. The voltage reference is based on a low drift band gap reference. The band gap uses a copper-based amplifier, which effectively reduces the drift to zero.

1. Maximum temperature coefficient: 50 ppm/°C, -40°C to +125°C

2. Initial accuracy: 0.1%

3. Operating temperature range: -40°C to +125°C

4. Low typical operating current: 140 μA

5. Line regulation: 50 ppm/V maximum

6. Load regulation: 40 ppm/mA maximum
