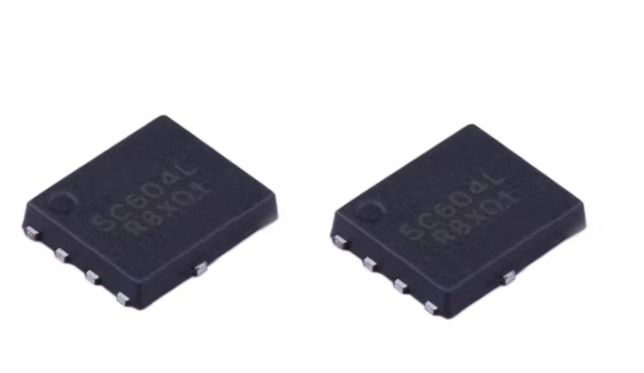

NTMFS5C604NLT1G 60V 1.2mΩ N-Channel power MOSFET, silk screen marked as SC604L, in DFN-5 package.

Product parameter:

Package / Case: DFN-5

Transistor Polarity: N-Channel

Number of Channels: 1 Channel

Vds - Drain-Source Breakdown Voltage: 60 V

Id - Continuous Drain Current: 287 A

Rds On - Drain-Source Resistance: 1.2 mOhms

Vgs - Gate-Source Voltage: - 20 V, + 20 V

Vgs th - Gate-Source Threshold Voltage: 1.2 V

Qg - Gate Charge: 120 nC

Minimum Operating Temperature: - 55℃

Maximum Operating Temperature: + 175℃

Pd - Power Dissipation: 200 W
