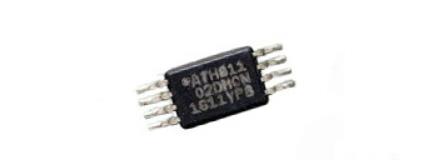

AT24C02D I²C-Compatible (Two-Wire) Serial EEPROM 2K bits (256*8) The AT24C02D is a 2 Kb serial EEPROM using an I²C (2-wire) serial interface. The device is organized into a 256*8 block and optimized for industrial and consumer applications, with a Schmitt trigger for noise-rejected filtered inputs. The AT24C02D operates from 1.7V to 3.6V and is available in a space-saving 8-pin TSSOP package option.

Features:

Bidirectional Data Transfer Protocol

Write-Protect Pin for Full Array Hardware Data Protection

Ultra-Low Active Current (1 mA maximum) and Standby Current (0.8 μA maximum)

8-Byte Page Write Mode: partial page writes allowed

Random and Sequential Read Modes

Self-Timed Write Cycle within 5 ms Maximum

ESD Protection > 4,000V

Endurance: 1,000,000 write cycles

Data retention: 100 years
