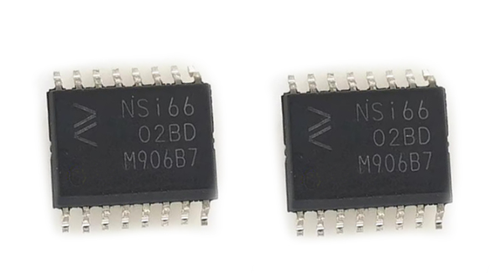

The NSi6602BD is a family of high-reliability isolated dual-channel gate driver ICs designed to drive power transistors switching to 2MHz. Each output can source 4A and sink 6A peak current with fast 25ns propagation delay and 5ns maximum delay matching. Housed in a SOP16 package offering 3000Vrms isolation, the driver operates with a maximum supply voltage of 25V while the input accepts supply voltages from 2.7V to 5V. All supply voltage pins support under voltage lockout (UVLO) protection.

Features:

• Isolated dual channel driver

• Input side supply voltage: 2.7V to 5.5V

• Driver side supply voltage: up to 25V with UVLO

• 4A peak source and 6A peak sink output

• High CMTI: ±150kV/us typical

• 25ns typical propagation delay

• 5ns maximum delay matching

• 6ns maximum pulse width distortion

• Programmable deadtime

• Accepts minimum input pulse width 15ns

• Operation temperature: -40℃~125℃

Applications

• Isolated DC-DC and AC-to-DC power supplies in server, telecom, and industry

• DC-to-AC solar inverters

• Motor drives and EV charging

• UPS and battery chargers
