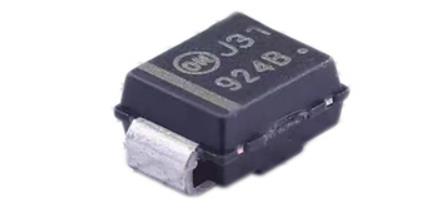

The brand new 1SMB5924BT3G 3W 9.1V patch Zener diode, silk screen marked as 924B, adopts DO-214AA plastic surface mount and is often used in Antminer S19XP hash board.

Feature:

• Zener Voltage 9.1 V

• Flat operating surface for accurate placement

• Package design for top or bottom board mounting

• Available in a lead-free package

Product parameter:

Type: Voltage Regulator

Configuration: Single

Nominal Zener Voltage (V): 9.1

Zener Voltage Tolerance: 5%

Maximum Forward Voltage (V): 1.5

Maximum Power Dissipation (mW): 3000

Test Current (mA): 41.2

Maximum Reverse Leakage Current (uA): 5

Maximum Regulator Current (mA): 164

Maximum Zener Impedance (Ohm): 4

Maximum Power Dissipation @ 25C (mW): 550

Minimum Operating Temperature (°C): -65

Maximum Operating Temperature (°C): 150

Maximum Zener Voltage (V): 9.56

Minimum Zener Voltage (V): 8.64

Packaging: Tape and Reel

Mounting: Surface Mount

Package Height: 2.2

Package Width: 3.56

Package Length: 4.32

PCB changed: 2

Standard Package Name: DO-214-AA

Supplier Package: SMB

Pin Count: 2
