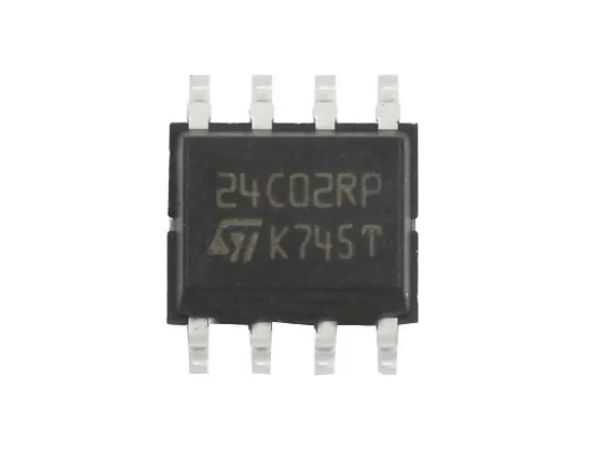

Original M24C02-RMN6TP 24C02RP Chip SOP-8 SMD Memory IC

Memory IC M24C02-RMN6TP is a 2-Kbit I²C-compatible EEPROM (Electrically Erasable Programmable Memory) organized as 256*8 bits, the 24C02RP can be accessed with a supply voltage from 1.8V to 5.5V,  these devices operate with a maximum clock frequency of 400 kHz.

24C02RP silkscreen marked EEPROM chips can be used in hash boards of Antminer and Whatsminer.

Features:

Memory array: 2Kbit (256 bytes) of EEPROM

Page size: 16 byte

Single supply voltage: 1.8V to 5.5V(limited temperature range)

Operating temperature range: from -40 °C to +85 °C

Random and sequential Read modes

Write protect of the whole memory array

Enhanced ESD/Latch-Up protection

More than 4 million Write cycles

More than 200 years data retention

Specification:

Memory Size: 2Kb (256*8)

Memory Interface: I²C

Clock Frequency: 400 kHz

Page size: 16 byte

Write Cycle Time - Word, Page: 5ms

Access Time: 900ns

Mounting Type: Surface Mount

Device Package: 8-SOIC
