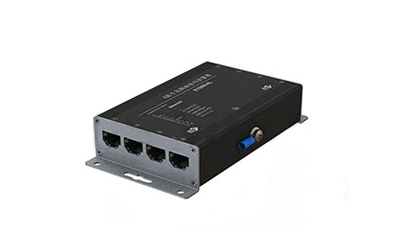

4-terminal arrester network signal

Product detail

Product description:

4-Port Surge Protector 4-port lightning arrester protects against excessive power supply voltage in the event of a short circuit that can cause power disconnection to damaged ports. after the short circuit subsides, the voltage will automatically return to normal.

Parameter:

Rated working voltage: 5V

Maximum continuous working voltage: 6V

Maximum continuous working current: 1A

Nominal discharge current: 5kA

Maximum discharge current: 10kA

Protection level: 15V

Response time: 1ns

Data transfer rate: 1000Mbit/s

Operating temperature: -40°C - 80°C

Shell material: aluminum alloy

Shell protection grade: IP20

Installation precautions:

1. The product is close to the protected equipment;

2. The product is connected in series with the signal cable;

3. The IN terminal is connected to the input, and the OUT terminal is connected to the protection device;

4. When wiring the product, it should be ensured that the electrical characteristics of the access cable are consistent with the terminal identification, that is: the RJ45 interface is connected to the network cable, and the PE is grounded;

5. The grounding can use copper wire of more than 1.5mm, as short, thick and straight as possible;

6. Guide rail products can be installed on 35mm guide rails;

7. Do not tie IN and OUT cable together.
