28-Slot 154kW Antminer Water Cooling Cabinet SKU: AP-H20-A28 Manufacturer Warranty

Product detail

Product Description

The Water Cooling Cabinet MF-H20-A28 is a high-density hydro cooling cabinet designed for Antminer S19/S21/S23 Hydro miners, supporting up to 28 units for efficient water-cooled Bitcoin mining. Built with CSA and CE certifications, it enables fast global deployment for both home and industrial mining sites

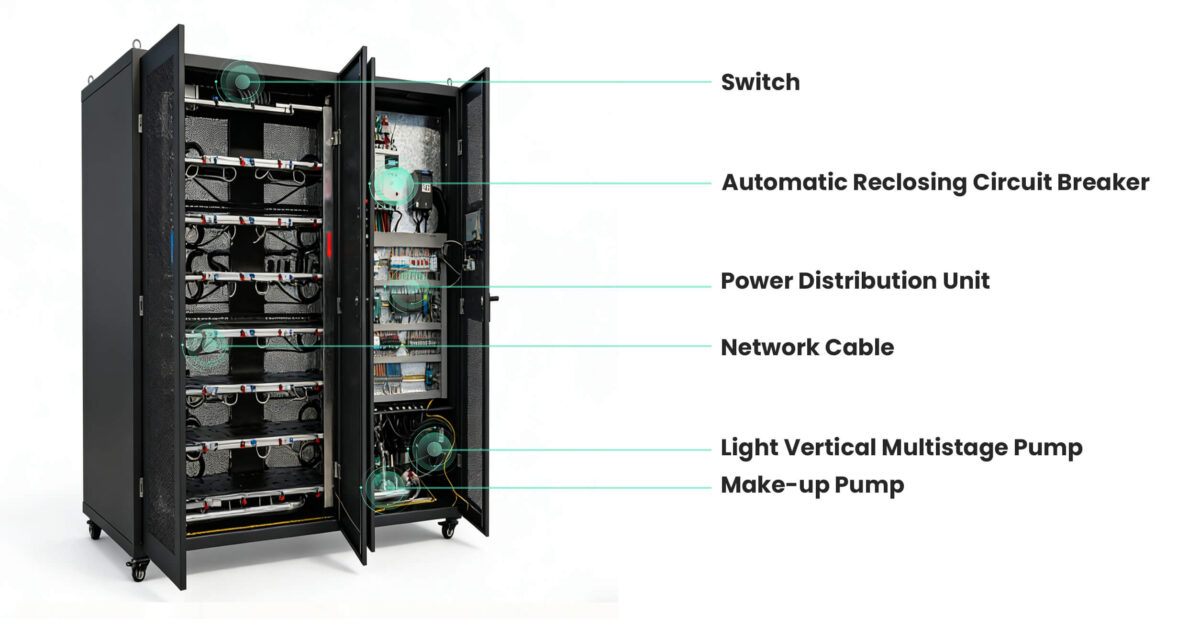

Its modular architecture integrates the cabinet, CDU (with pump station and control system), power system, and cooling modules into a flexible liquid cooling system. A single CDU can support multiple cabinets, allowing scalable water cooling solutions with high energy efficiency.

Compatible with mainstream Antminer Hydro series, this water cooler delivers stable performance, low power consumption, and reliable water cooling mining for growing operations.

Specifications

Model	MF-H20-A28
Dimensions (L × W × H)	1000 × 1000 × 2200 MM
Weight	230 KG
Installed Units	28 units * Antminer S19/S21/S23 Hyd
Installed Load	154 kW
Vertical Multistage Pump Power	4 kW
Makeup Pump Power	0.2 kW
Cooling Medium	Ethylene Glycol
Inlet / Outlet Temperature	30–42 °C
Rated Flow Rate	14 m³/h
Working Temperature	32
Working Humidity	10%–90%
PLC Control System	Constant Flow Control
Communication Protocol	MODBUS-RTU
System Operating Basic Parameters
System Pipeline Pressure	0.2–0.4 MPa
System Operating Temperature Range	20–50 °C
Single-Machine Coolant Circulation Requirement	≥ 0.5 m³/h
Total System Internal Coolant Requirement	≥ 0.28 m³
Electrical System Main Parameters
Residual Current Protection Circuit Breaker	400 A
Contactor	9 A
Intermediate Relay	24 V
Frequency Converter	380 V
Dry Cooler Specifications
Dimensions	3200 × 1650 × 1710 MM
Weight	750 KG
Cooling Capacity	154 kW
Fan Quantity	2 PCS
Working Fluid	Ethylene Glycol
Fluid Flow Rate	15
Inlet / Outlet Temperature	48–40 ℃
Ambient Temperature	38 ℃
Operating / Max Pressure	0.25 / 0.4 MPa
Dry Cooling Tower Fan Total Power	8.3 kW
