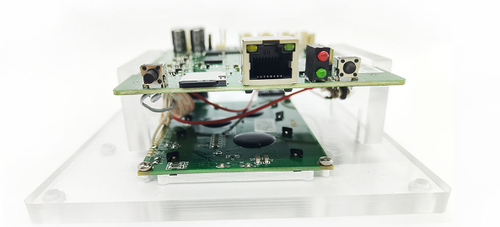

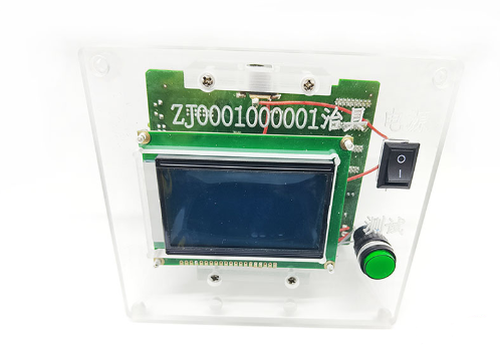

Antminer Test Fixture For T9 T9 + S9 S9i S9j S9se 9k

Antminer S9 test fixture can be used to test and repair Antminer S9 series and T9 series of hash boards, including Antminer S9, Antminer S9i, Antminer S9j, Antminer S9se, Antminer S9k, Antminer T9, and Antminer T9+.

The initial TF card data of the Antminer S9 test fixture is S9. When using this test device to test other miners’ hash boards, you only need to replace the TF that matches the data. (TF program card is sold separately)

The test fixture can help you quickly find the location of the bad chip on the hash board so that the miners can quickly repair it.

Attention please: the test fixtures sent by us by default are not coated with insulating paint. Please do not touch the powering unit with bare hands during the use of this product. Once touched, static electricity will be generated and the CPU will overheat and cannot be used. Apply insulating paint to the powering area, or wear electrostatic gloves before using this product.

Schematic diagram of USB-TTL cable:

Green: RXD

Black: GND

White: TXD

Red: idle

Product contains:

Test fixture host * 1

External power adapter * 1

Data cable * 1

USB-TTL * 1
