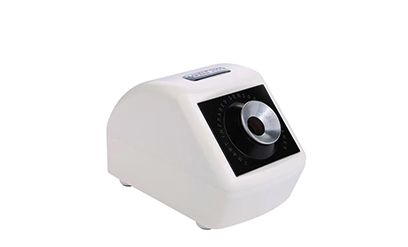

YIHUA 200Q soldering iron tip cleaner is suitable for cleaning various soldering iron tips. The device will automatically run and clean when the soldering tip is inserted into the cleaning port. After being removed, the device will stop running and enter a dormant state. The product is light in weight, small in size, has noticeable effects, and is very convenient to use.

200Q technical parameters:

Model: 200Q

Brush size: 25*20mm

Power: 5W

Host size: 110*75*77mm

Net quantity: 0.5KG

DC12V interface: 5.5*2.1*11mm

Motor voltage: DV12V

Working temperature: 0-40°C/32-104°F

Motor speed: 4500prm

Storage temperature: -20-80℃/4-176F

Adapter input: AC 110-240V 50-60Hz

Storage humidity: 35%-45%

Adapter output: DC 12V 1A

Cleaning inlet diameter: 12.5mm

Instructions for use:

1: Preheat the soldering iron to 200-300°.

2: Insert the welding nozzle into the cleaning port, and the equipment will automatically run and clean.

3: It can quickly clean the soldering iron tip stains, increase the life of the soldering iron tip, and improve work efficiency.
