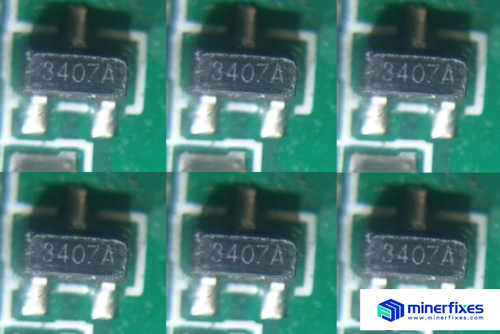

The CJ3407 uses advanced trench technology to provide excellent RDS(on) with a low gate charge. The device is housed in an S0T-23 package, making it ideal for use as a load switch or PWM applications. Its silkscreen mark is 3407.

Product parameter:

Maximum drain-source voltage V _DS: -30 V

Maximum gate-source voltage V _GS: ±20 V

Maximum continuous leakage current I _D: -4.1 A

Maximum Power Dissipation P _D: 350 mW

Maximum junction temperature T_J: 150°C

Drain-source on-resistance:

  @(V_GS=-10V, I_D=-4.1A): 60 mΩ

  @(V_GS = -4.5V, ID= -3A): 87 mΩ
