SN74LVC2G241DCUR / C41R

SN74LVC2G241DCUR double buffer and line driver is designed for 1.65-V to 5.5-V VCC operation. Specifically designed to increase the performance and density of tri-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.

The SN74LVC2G241DCUR has independent output enable (1OE, 2OE) inputs. Pass data from the A input to the Y output when 1OE is low and 2OE is high. When 1OE is high and 2OE is low, the output is in a high impedance state. To ensure a high-impedance state during power-up or power-down, OE should be connected to VCC through a pull-up resistor, and OE should be connected to GND through a pull-down resistor; the minimum value of the resistor is determined by the driver's current sinking or sourcing capability.

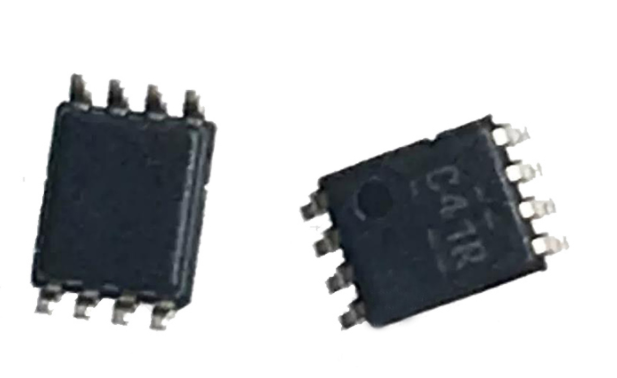

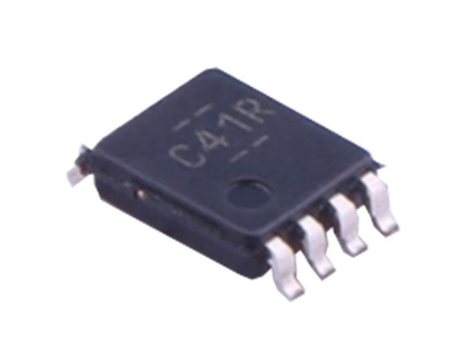

Silkscreen C41R

SMD VSSOP8

Voltage isolation buffer IC

74LVC2G241
