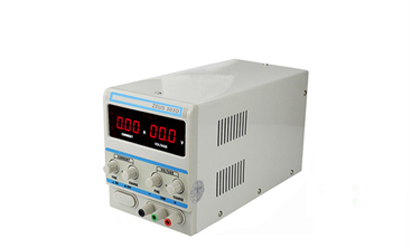

RXN-303D DC power supply

High-precision regulated power supply

RXN-303D DC power supply can be used as a voltage regulated or current regulated power supply. The voltage regulation range is 0 to 30V, and the current range is 0 to 3A. Set the output through the rotary switch and display the value on the LCD display. It has low ripple and noise, high reliability and high precision. Contains test leads to connect to the power source and load.

Overview

• Lavolta's high-precision DC power supply

•Suitable for testing and repair centers

• Voltage regulation 0-30V; current regulation 0-3A

• Built-in cooling fan

•Full metal structure, compact design and handle

Size: 278mm * 126mm * 155mm

1. Display current output

2. Display voltage output

3. Current fine adjustment, fine adjustment of output current

4. Constant current (C.C.) indicator

5. Power switch

6. Current coarse adjustment: coarse adjustment of output current

7. Voltage fine adjustment: fine adjustment of output voltage

8. Coarse voltage adjustment: coarse adjustment of output voltage

9. Constant voltage (C.V) indicator

10. "+" input terminal: positive polarity (red)

11. "GND" terminal: ground terminal (green)

12. "-" output terminal: negative polarity (black)

Adjustable DC voltage power supply kit:

303D power supply * 1

AC input cable* 1

5A output cable* 2
