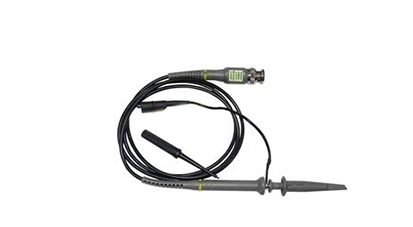

The P6020 Oscilloscope probe is suitable for all digital and analog voltage detector test circuits. A pair of 20Mhz oscilloscope probes with a switch for 1x or 10x attenuation for oscilloscopes with bandwidths up to 20 MHz. Interchangeable probe tips for high sensitivity, excellent performance, and reliable functionality. Mini grab clips to help identify the different channels.

Product parameters:

Model: P6020

Bandwidth: 20MHz

Type: BNC

Rise time: 17.5ns

Attenuation ratio: 1:1 / 10:1

Resistance: 1MΩ / 10MΩ +/- 2%

Input capacitance: 1X: 70~120pF, 10X: 14~18pF

Input voltage: 1X: 200Vp-p, 10X: 600Vp-p

Working environment: 0-50°C

Compensation range: 15pF-45pF

Working humidity: 0-80%RH

Application place: oscilloscope test

Line length: 120CM

Feature:

- The interface is made of metal, which is not easy to wear and will not be damaged after repeated use.

- The insulating rubber is lengthened, not accessible to age, and prevents electric shock.

- Professional oscilloscope probe, easy to use.

- Suitable for laboratories, physics experiments, and student teaching places.

- Standard BNC interface design, perfectly compatible with related equipment.
