Signal voltage conversion chip (silk-screen CN) SN74LVC1G126DCKR for Antminer 19 series hash board. The 74LVC series utilizes silicon-gate CMOS technology and is designed to operate at 1.65 to 3.6V, 5V Tolerant Input. Compatibility: Input LVTTL/TTL, output LVCMOS. Latch-up performance exceeds 250 mA per JESD 17; ESD protection exceeds JESD 22.

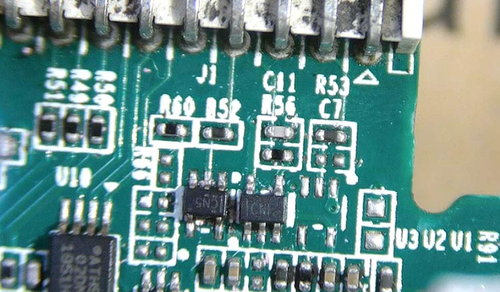

Silkscreen CN5 and CNF are the same product

Logic Family: 74LVC

Logic Function: Buffer

Number of channels: 1

Schmitt Trigger Input: No

Input Type: CMOS, TTL

Output type: 3 states

Polarity: non-inverting

Mounting Type: Surface Mount

Package Type: SC-70

Number of pins: 5

Maximum high level output current: -32mA

Maximum low level output current: 32mA

Max Propagation Delay Time: Max CL 4.2 ns @ 5 V

Aspects: 2.15 * 1.4 * 1 mm

Maximum operating power supply voltage: 5.5V

Minimum Operating Supply Voltage: 1.65 V

Minimum operating temperature: -40°C

Width: 1.4mm

Maximum operating temperature +125 °C
