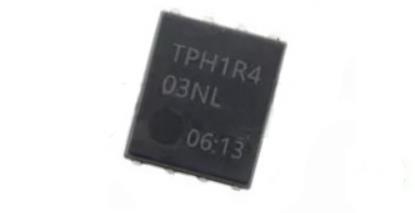

TPH1R403NL Silicon N-channel MOS The TPH1R403NL N-ch MOS field effect transistor is used for the repair and replacement of the MOSFET chip of the hash board.

Features:

(1) High-speed switching

(2) Small gate charge: QSW = 10.6 nC (typ.)

(3) Low drain-source on-resistance: RDS(ON) = 1.7 mΩ (typ.) (VGS = 4.5 V)

(4) Low leakage current: IDSS = 10 μA (max) (VDS = 30 V)(5) Enhancement mode: Vth = 1.3 to 2.3 V (VDS = 10 V, ID = 0.5 mA)

Application:

High efficiency DC-DC converters

Switching voltage regulators
