TMP75

Product detail

Product description:

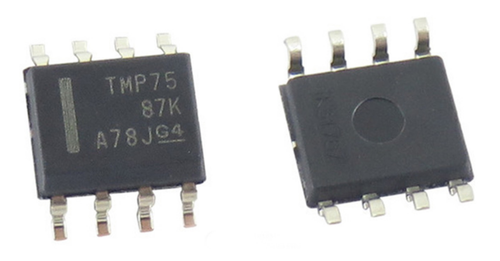

TMP75AIDR SOP-8

Miniature temperature sensor chip

Suitable for many types of miners: for example Antminer S9, T9+, S9se, S11, S15, Whatsminer...

Tip: Due to different production times and batches, the same type of Hash board may also use different types of temperature sensors. Therefore, please be sure to check the model of your Hash board temperature sensor in order to purchase spare parts accurately.

Feature:

•TMP175: 27 addresses

• TMP75: 8 addresses, traceable to NIST

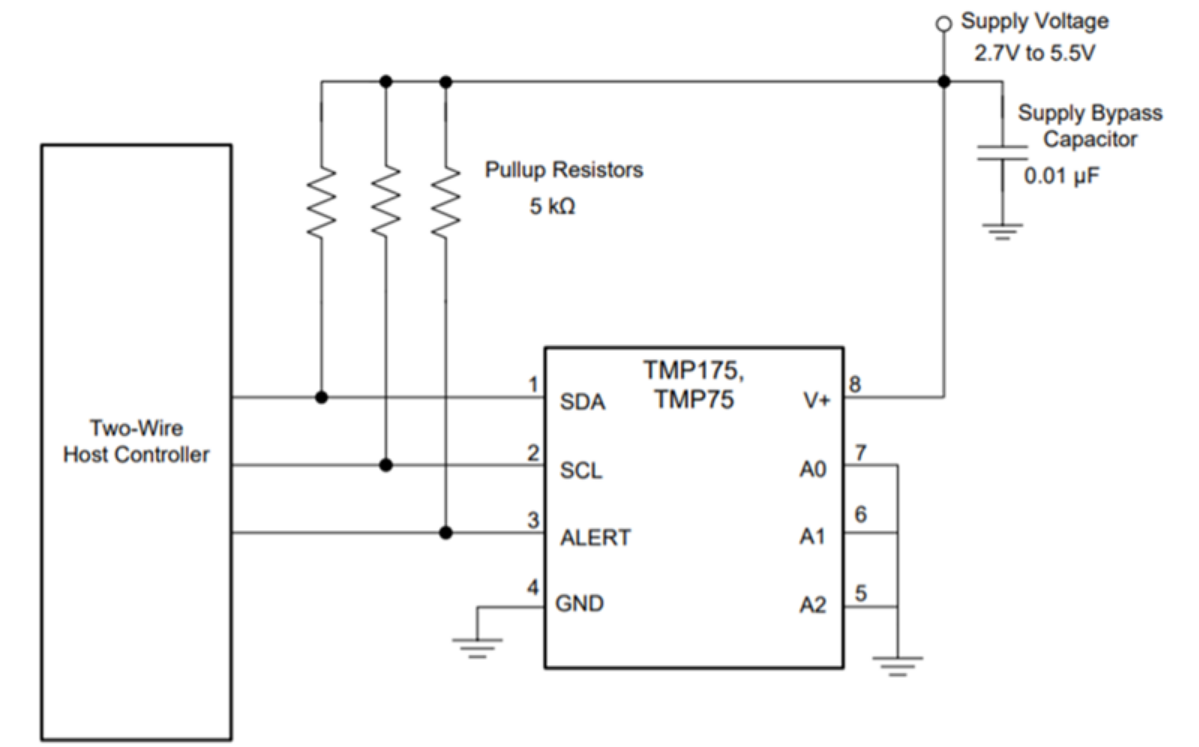

• Digital output: SMBus™, two-wire system and I2C interface compatibility.

• Resolution: 9 to 12 bits, user selectable

• Accuracy:

– −1°C (typical value), −40°C to + 125°C

– ±2°C (maximum) from −2°C to +125°C

• Low quiescent current: 50μA, 0.1μA standby

• Wide power supply range: 2.7 V to 5.5 V

• Small 8-pin MSOP and 8-pin SOIC packages

Application field:

• Power temperature monitoring

• Computer peripheral thermal protection

• Laptop

• Mobile phone

• Battery management

• Office machines

• Thermostat control

• Environmental monitoring and HVAC

• Mechanical and electrical equipment temperature

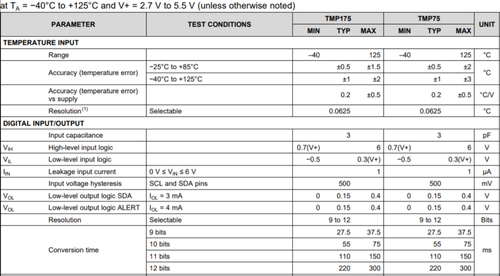

Electrical Characteristics
