Product detail
Product description:

FNIRSI-1013D Digital Tablet Oscilloscope Dual Channel 100M Bandwidth 1GS Sampling Rate Mini Tablet Digital Oscilloscope

Features:
Screen: Fully fitted 7 "800*480 resolution color TFT LCD display, bright color, high contrast; The touch is a capacitive touch screen, just like a pad touch on a modern mobile phone, not a resistive touch screen operated by an ancient fingernail

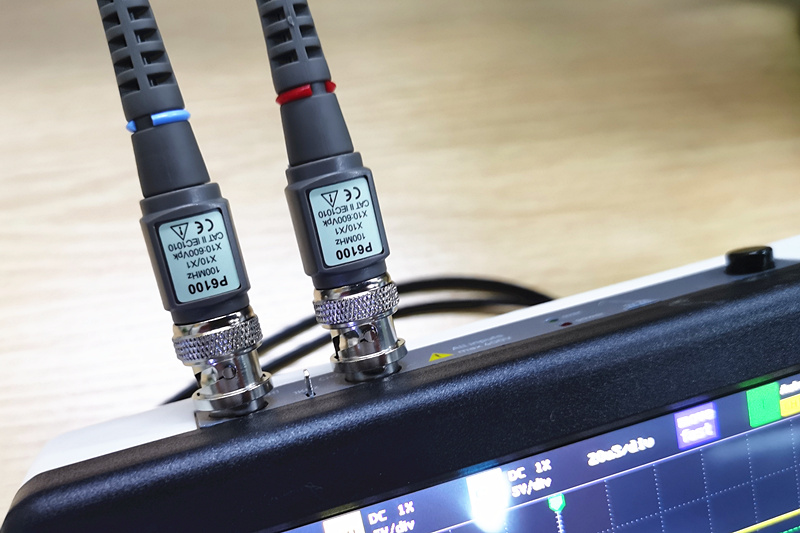

Dual input: Has two input channels, the input impedance of 1 m ohm, can measure 2 different set of signals at the same time, to the input signal in the 2 groups were compared to judge to analyze problems, such as power amplifier unit of input and output signal of the contrast analysis to test the character of magnification and distortion degree, and the output resistance, full bridge or half bridge switching power supply complementary PWM signal test, such as relative to single channel has more extensive applicability
Intelligent anti-burning: the two input channels have built-in high-voltage protection modules, which can tolerate up to 400V voltage input. There is no need to worry about the loss of oscilloscope caused by the probe not being moved to 10x position due to the high voltage measurement
Complete trigger function: with automatic, single, normal three trigger modes, single trigger mode to test the sudden aperiodic burst signal, such as the car ignition signal;Normal trigger mode to test aperiodic digital logic signals, such as infrared remote control signals;Automatic trigger mode test cycle analog signal, such as sinusoidal signal;Wide range of uses
One-key: Automatic adjustment does not need tedious manual adjustment, one-key automatic adjustment;The adjusted waveform appears in the center of the screen (when the dual channels are started, channel 1 is in the top half of the center, and channel 2 is in the bottom half of the center). The time used is short. It takes only 1 second to automatically adjust the signal of 1V peak and peak value, while it takes about 5 seconds for a typical desktop oscilloscope.The larger the range of the measured signal, the shorter the adjustment time

Note: The project will send the English version by default

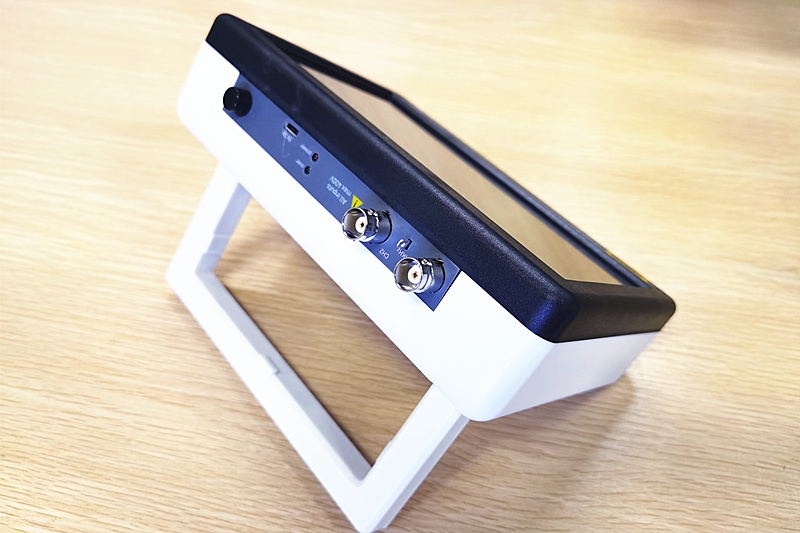

handheld oscilloscope

oscilloscope uses

Specification

Material: Plastic, electronics
Color: Black
Size(L x W x H): About 184mm x 124mm x 50mm
Model: FNIRSI 1013 d
Maximum test voltage: 1x:40V 10X: 400V
Channel number: 2
Cursor type: horizontal x, horizontal Y, trigger Y
Screen size :7"
Battery: 6000mah rechargeable battery(built in)
Scrolling mode: supported
Screen resolution :800 x  480
One-click AUTO: support
Display process :TFT
Waveform storage: 11,000 screenshots + 1,000 sets of waveform
Analog bandwidth :100MHz
Waveform manager: supported
Maximum sampling rate :1GS/s
Voltage accuracy :± 2%
Time of rise :< 3ns
Frequency accuracy :± 0.01% accuracy
Storage depth :240Kbit
Measurement parameters: a total of 12
Input impedance :1MQ
Vertical sensitivity: 50mv-500v
Standby time :4 hours
Time base range :50S 10ns
Extended interface :USB transfer interface
Trigger mode: single/normal/automatic
Charging requirements :5V 2A/3A/4A
Trigger edge: rising edge/falling edge
Coupling mode: AC/DC
