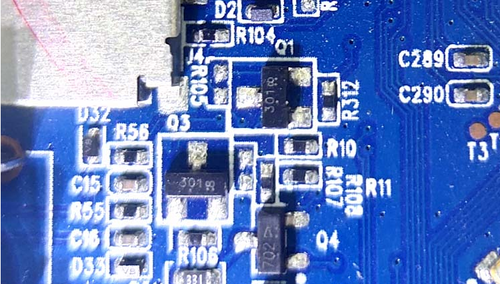

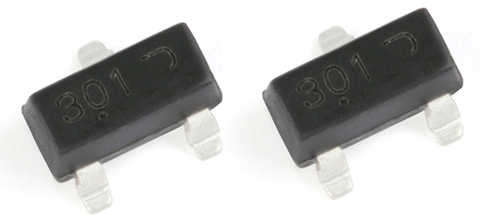

The FDV301N N-channel logic level enhancement mode field effect transistor is produced using Fairchild Semiconductor's proprietary high cell density DMOS technology. This device is located on the Whatsminer H3 control board and is designed to minimize on-resistance. Since no bias resistors are required, this N-channel FET can replace several digital transistors with different bias resistor values.

Features:

• 25 V, 0.22 A continuous, 0.5 A Peak. RDS(ON) = 5 Ω @ VGS= 2.7 V RDS(ON) = 4 Ω @ VGS= 4.5 V.

• Very low-level gate drive requirements allowing direct

• operation in 3V circuits. VGS(th) < 1.5V.

• Gate-Source Zener for ESD ruggedness. >6kV Human Body Model

• Replace multiple NPN digital transistors with one DMOS FET.
