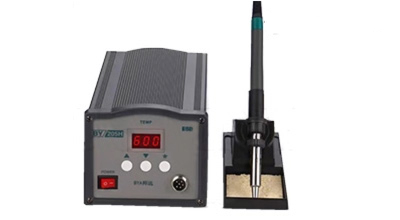

High-frequency soldering station 205H constant temperature adjustable temperature electric soldering iron, anti-static industrial grade 150W maintenance soldering station. High-frequency constant temperature soldering station, high-frequency eddy current heating, second-speed heating, precise temperature control, electrostatic protection, 100 ~ 600 ℃ constant temperature adjustable, suitable for electronic maintenance welding.

Model: 205H

Name: Intelligent lead-free high-frequency constant temperature welding station

Soldering station host (anti-static aluminum alloy shell)

Power consumption: 150W

Output voltage: AC 36V, 400KHZ

Temperature control range: 100℃～600℃

Temperature control method: digital display button to adjust the temperature

soldering iron

Model: 205H

Soldering iron tip: 500 series

Heating core: 205 high-frequency heating core

Ground Impedance: <2Ω

  Drain Voltage: <2mV

  Heating element: high-frequency eddy current

  Wire material: soft silicone wire

advantage:

1. Ordinary heat is transmitted to the soldering iron head through the resistance wire, which has a slow speed and high energy loss. The high-frequency eddy current electromagnetic wave heat is directly transmitted to the soldering iron head, which is efficient and fast like drilling a wood to generate heat by friction and a lighter to ignite directly.

2. Large and small solder joints take all: excellent heating and temperature recovery speed and high power make it suitable for more welding fields

3. It has anti-static protection to prevent electrostatic breakdown of electronic components during welding and effectively avoid unnecessary wear and tear during welding.
