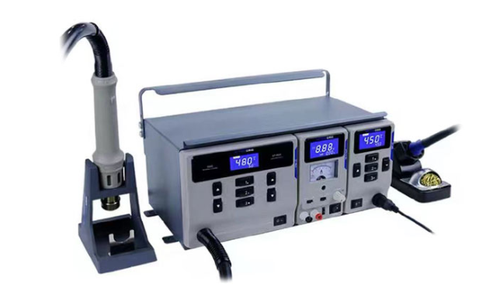

MS-300 Desoldering Gun Repair Kit includes ST-862D desoldering station, ST-965 welding station, and APS15-3A power supply. The power of the ST-862D desoldering station is 1000W, the magnetic induction automatically sleeps, and the quality is guaranteed. The power of the ST-965 welding station is 65W, the temperature is adjustable from 200 to 450 ℃, and it is intelligently standby and shut down. APS15-3A power supply is a 0.5A/3A dual gear switching, 5V/15V continuously adjustable series-type regulated linear power supply. The products in the suite can be used alone or in combination. The quality is guaranteed.

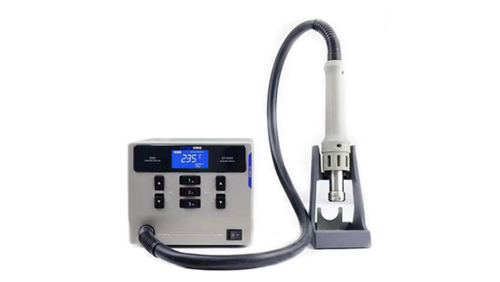

Product model: ST-862D

Rated working voltage: AC 230V±10% 50Hz

Overall power: 1000W(Max)

Temperature range: 100~480C/212F~896F

Temperature accuracy: ±35°C

Hot airflow: 120L/min(Max)30L/min(Min)

Air supply device: brushless vortex fan

Heating core: plug-in

Quick temperature/air volume: 3 groups of temperature/air volume, which can be called quickly

Heating power display: 5 dynamic power bars

Sleep function: automatic sleep, regular work

Dimensions: 208x174x150(mm)

Packing list: Host*1, Handle*1, Air Nozzle*4,Heat gun bracket*1, power cord*1, manual*1

Net weight: 3.34kg

Product model: ST-965

Rated working voltage: AC230V±10%50Hz

Rated power: 65W

Temperature range: 200~450℃/392~842F

Temperature stability: ±1°C (air still without load)

Temperature accuracy: ±10℃

Safety level: Class 1 (controller host) Class 3 (welding handle accessories)

Quick temperature: 3 groups of temperatures can be called quickly

Sleep function: 0~60 minutes; the default is 10 minutes; turn on sleep

Turn off the heating function: 0~60 minutes; the default is 10 minutes; turn off the heating

Heating core: Plug-in ceramic heating core

Handle material: soft silicone wire

Dimensions: (L)210x(W)88x(H)150mm

Weight: about 1.97g

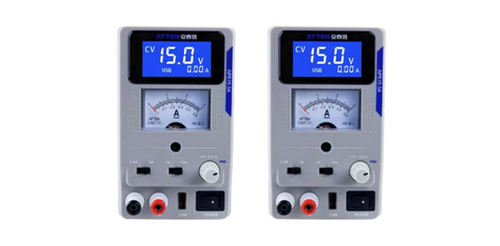

Product model: APS15-3A

Primary road output voltage: 0-5V/0-15V dual gears

Primary road output current: 0.5A/3A dual gears

Rated output power: 56W (including USB output)

Input voltage/frequency: 220V/A

Ripple and Noise: CV≤0.5mVrms(5Hz~1MHz)

Power regulation: CV≦0.01%+3MV

Load regulation: CV0.01%+8mV

Protection function: OCP (over-current cut-off recoverable type) OHP (overheat protection)

Other functions: coarse adjustment/fine adjustment 5V/15V switching, 0.5A/3A switching parameter locking function

USB interface: fixed 5V output (±5% accuracy), 21A max (over-current protection, cut-off output)
