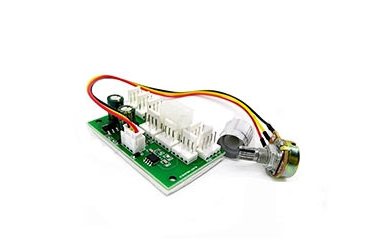

PWM fan controller has the function of adjustable fan power. Control power can bring 8 fans at the same time, PWM fan speed regulation, 4-wire fan or 3-wire with PWM speed control port can be used in common. Note that the fan interface sequence is commonly used. The maximum power of a single fan is within 60W, and the total power is within 300W (note that the total power also depends on the power of the chassis power supply)

Working voltage: DC 12V

Quiescent current: 0.015A (standby state)

PWM duty cycle: 0%-100%

PWM frequency: 25khz

Dimensions: 60MM*35MM*16MM

Remarks: P is the 12V positive pole, G is the 12V negative pole, and the wiring sequence must not be mistake.
