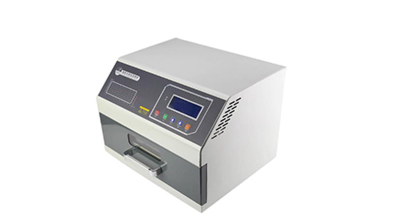

ZB5040HL reflow furnace is mainly a desktop reflow equipment for the production and maintenance of SMT and other products. The product uses high-efficiency far-infrared heating elements and distributed thermocouple temperature measurement devices. Through the microcomputer's precise control, the reflow furnace's temperature curve control is more precise, and the temperature of the reflow plane is more uniform. It can fully adapt to the reflow requirements of various alloys and lead-free solders. Its temperature curve is precise and adjustable, and the equipment has automatic fault detection and reporting functions. It includes multiple uses such as reflow, repair, and drying. The circuit structure adopts an efficient, convenient, and integrated design. It uses aluminum silicate high-temperature resistant and environmentally friendly thermal insulation cotton, which has an excellent thermal insulation effect and has been improved and upgraded in terms of performance, structure, and operation.

Product parameters:

Model: ZB5040HL

Working power supply: AC220V 50~60Hz

Rated power: 3600W

Heating method: Infrared radiation heating and hot air circulation

Effective welding area: 500mm*400mm

Drawer size: 550*430*30mm

Net weight: 37.1kg

Gross weight: 40.1kg

Machine size: 675*600*312mm

Product features:

1) The interface of the liquid crystal display is clear (temperature, time, and curve are displayed at the same time);

2) Infrared heating tube, imported nickel-chromium heating wire, uniform heating, rapid heating, quality assurance;

3) Ceramic thermocouple, high sensitivity, accurate temperature measurement, strong stability;

4) Double-layer heat-insulating glass observation window to monitor the working conditions in the furnace in real-time.
