LM185H-1.2/NOPB

LM185H-1.2/NOPB is a micropower 2-terminal band gap Zener diode. Their operating current range is 10μA to 20mA, with extremely low dynamic impedance and good temperature stability. On-chip micro-tuning is used to provide strict voltage tolerance. Because the LM185-1.2-N bandgap reference uses only transistors and resistors, it has low noise and good long-term stability.

Reference voltage type: shunt-fixed

Product range: LM185 series

Reference voltage: 1.235V

Initial accuracy: 1%

Temperature coefficient: ± 150ppm/°C

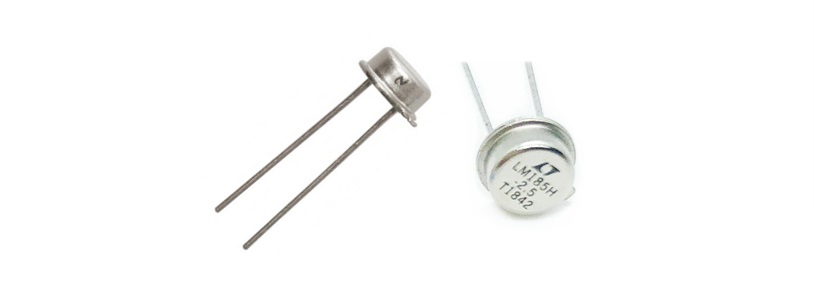

Voltage reference housing style: metal can

Number of Pins: 2 Pins

Minimum working temperature: -55°C~125°C

MSL: MSL 1-unlimited
