Luckyminer LV06-V2.3.0_upgrade firmware 页面升级固件
17006
1000
Download points: 0
2024-04-03 15:38
download
LV06-V2.3.0- upgrade firmware 页面升级固件.zip

Version 2.3.0 Update:

1. Enhanced error detection for mining pools, improving stability and reliability.

2. Upgraded overheating logic for improved performance and safety.

3. Fixed stability issues, ensuring a smoother user experience.

Attention:

Firmware update takes time. Please ensure a stable network during the upgrade. If the network is lost during the update, it will fail, with a failure rate of around 30%.

126
Sign in You can only post comments after logging in.
@waldman

Hi all, I tried to use the original BitAxe firmware and just bricked my device... =/

Is there any way to recover the original firmware or re-flash using USB/Computer/Anything?


I'm comfortable soldering stuff and know a thing or two about flashing firmwares... I just couldn't find any port nor anything that looked like a serial/usb connection.


Any help would be much appreciated (and yes... I do have some Sats to send if I can get this device back on-line! =] )

@Ada

ESP-Prog JTAG debug, the user guide please go to the download page to search ESP

@mustang77

yo bro

try the msg id 510


[INFO - DISKUSSION] bitaxeUltra miner (BM1366 ASIC) (bitcointalk.org)


u have to solder and reflash


sats are always welcome bc1qrnt3u3hu9xqhtrsvkkpc39226ye2gtvzt9cmya

@phil31

please can you provide the web site bin too ?

@Ada

Sorry we did not public the websit bin file due to a high operation failure rate.

@Tera

And... How much time need for the "Engeneer" to make the new firmware update with fixes of the wi-fi reconnection and fan speed automations ? May be the year of hard working and thinking ?

@Ada

There will be the firmware with wifi reconnection function, if this is the demand of most users.

In LV07 it will work with fan speed automations.

@Tucho

Hello!

I show you my LV06 mod. The problem it had is that the bottom part of the chip got very hot. This caused the current it consumed (mA) to increase and restart the miner. I solved it using 3 levels of 2mm thermal pads due to the different heights of the components, and I put a giant heatsink along with an 80mm fan. Comparing firmwares 2.1, 2.3 and 2.1.3, the best of all was 2.3 very stable. I didn't try using the maximum overclock since that's how I like.

The hashrate ranges between 300 and 600 GH with 550 MHZ and 1250mV As seen in the stats.

I shouldn't have any problem with this mod, mostly because the heatsink is oversized for the dissipation it needs.


I share some images of what the mod looks like. It's not pretty but it works wonderfully XD


@Bogard

I really like the mod you made even though I see it as somewhat rudimentary but functional, I was thinking of doing something similar but my idea was just to put a heatsink on the outside of the miner's casing, believing that if the temperature drops or it will only make the casing does not get so hot

@phil31

hi,

weel since i have my LV06, v2.1, he reboot several time ( maybe 100 / day !) each days :(

i tried with the 2.3 fw, same !

the ASIC temperature is not so big, something like 40°C !

i tried your solution but nothing better.

what was your asic temperature before your mod ?

@Tucho

The temperature hit 78ºC (with underclock 60-something) before and now it is 42-44 c. But the problem was the components under the chip, those did get very hot and restarted with "0 MH" before restarting the consumption of W hit 30W... very strange, but this happens when some components overheat.

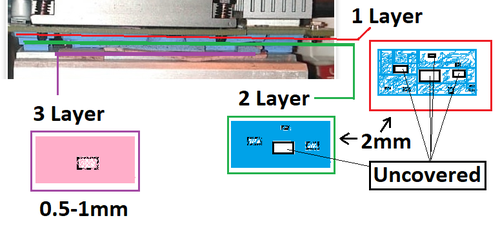

Here is an approximate drawing of the layers of the thermal pads

Due to the different heights of the components I had to do it this way, the first layer covers the smallest components, the second layer covers those of medium height and the third covers the last one. The drawing is not exact, it is an example of how I did it. For layer 1 and 2 I used 2mm thermal pads for the third layer, I don't remember if it was a 1 or 0.5 mm pad.

To do this it is very important that the components are all covered correctly, with just 1 layer you will not achieve good results. In my case the problem was the bottom part, since being in the case, the plastic got very hot. And to heat the plastic that much, the components of the board have to be really VERY hot.


I don't know if this information will be useful to you, but check the temperature under the board, surely some component gets very hot.

@phil31

thanks for your reply !

strange, i don't notice any overheating .. more or less 40°C without the mod ..

but the device reboot sevral sevral time each days !..

will try to check individualy component on bottom ..

@preteen_durably606

Thanks for sharing!

How did you open your unit if I may ask?

@Ada

https://www.minerfixes.com/download/view?key=EE59EA8686750B51

See the video here.

@Tucho

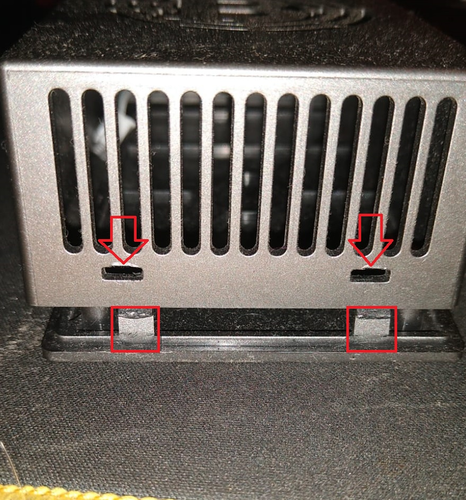

Here are the 2 locks that you have to push, but be careful they can break. It was difficult to open the first time

@phil31

how to have this stats web page ? where is the update of the web site ?

@Ada

Enter the IP address displays on the device into the browser's URL bar, and then you can access the settings page. At the bottom of the settings page, there are firmware update options.

@Tucho

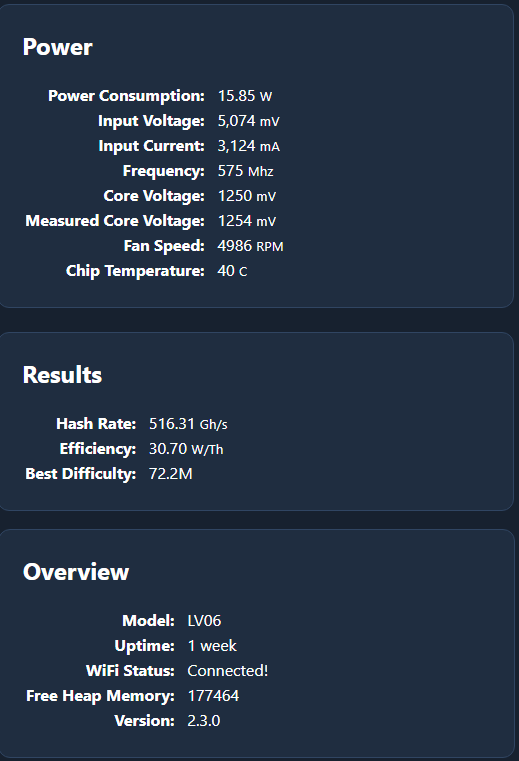

The blue background are the stats of the Lucky Miner from its dashboard (from IP) the stats in the white background are from the pool where I am mining (luckymonster.pro)

@Adamox

Hello. Cannot be controlled Automatic Fan Control spins at max.

@Ada

LV07 will improve it.

@vistos

Okay, lucky miner is now updated to v2.3.0 but I receive error message in logs:

bm1366Module: Serial RX invalid 11

Lucky miner is not mining.

@Ada

Show me the setting page,please.

@neremicheva

Thanks ! It works, it was updated very quickly and without problems.

@shabashovoleg41

Как уменьшить скорость вентилятора..перехожу из авто в ручную регулировку..а он всеравно крутит 5 тысяч оборотв..хотя темп5ратура 49градусов...можно повысит до например 60 градусов и вентиль хотя бы на 4 тясячи???

@Ada

LV07 can configure this function. But LV06 without, sorry!

@celiaco365

hola, soy nuevo en esto, cuando voy a configurar el lv06 en la web, subo el archivo del firmare y sigue sin funcionar, que solución tiene??

@Ada

I hope you've solved the problem. If not, contact  whatsup/wechat/telegram: +86 13688384591

@m.uhlmann.zwickau

Can I use this for the LV05 ?

@yaote1010

yes, my LV05 update v2.3.0 successfully and work fine.

@fabriciosantos.lem

Arquivo www.bin?

@Ada

No,dear. Its esp-miner.bin file for "Update Firmware".

@satexpert

Working ok. thanks.

@guiwisz

updated successfully

it was very quick

Thanks!

@jb18007

LuckyMiner LV06 reports to DHCP server hostname "espressif". When more miners are in the network, all share the same hostname.

It wold be nice to have an option to define "hostname", so each miner will register it's hostname to DHCP server....

$ host espressif

espressif.lan has address 192.168.13.244

espressif.lan has address 192.168.13.183

espressif.lan has address 192.168.13.239


@Ada

If you have more than one miner on the same WiFi network, you need to append a serial number to the User name, for example, 'User.001', 'User.002', and so on. Or you can just find one Luckyminer running.

@by.nono

₿ (413028) example_dns_redirect_server: Waiting for data

₿ (417338) example_dns_redirect_server: Received 46 bytes from 192.168.4.2 | DNS reply with len: 62

PgUp12345PgDn
