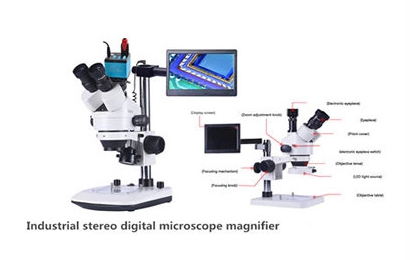

Industrial stereo digital microscope, for circuit repair and maintenance. The camera is upgraded to HV200 type, the display is upgraded to 10.1 inches, 7-45 times real magnification, improve work efficiency, precision parts repair.
Welcome to choose our company's high-quality products, stereo digital high-definition microscope, the head can be rotated 360 °, suitable for a variety of purposes, such as circuit repair, watch repair, biological research, mineral observation, spinning inspection, antique identification.
Advantages of this product:
1. High-definition wide-angle eyepieces, wide-angle eyepieces with large diameter and high eyepoints, high-definition imaging, no fatigue when watching.
2. Trinocular synchronization interface, the new version of 0.5X synchronization interface, can be connected to CCD, electronic eyepiece camera, etc., synchronized display on the display.
3. Coated anti-reflection objective lens, high-definition coating anti-reflection lens, all copper material, moisture-proof and anti-fog, no glare, large depth of field, high definition.
4. Continuous zoom, 0.7X-4.5X continuous zoom, which is more practical and convenient than the fixed magnification.
5. The limit rotating ring can prevent the nose from sliding down, and it can rotate around 360° at the same time, making it more convenient to use.
Trinocular 7-45 times HV200 camera parameters:
Interface | HDMI/VGA |
Resolution | 1920*1080 |
Frame rate | 30 frames per second |
Pixel | 2 million pixels |
Support the crosshair function, the picture is clear and no noise, no photos or videos are allowed.
Trinocular sync focus:
Optical expansion | standard 7-45x continuous zoom (0.5X, 0.7X height-increasing lens or 2X extending lens optional) |
Eyepiece | WF10X/20mm large field of view, wide angle, high eye point |
Objective lens | 0.7X-4.5X, zoom ratio 6.4:1, to ensure image parfocality |
Observation head | 45° tilt, 360° rotation, pupil distance 54-76mm; bilateral diopter adjustment ±5 |
Field of view range | 28.4mm-4.4mm |
Focusing mechanism | the tension of the bracket handwheel is adjustable, and the focusing stroke is 50mm |
LED light source | integrated adjustable brightness LED light source |
